When it comes to selecting the best Thrust cylinder for your specific application, there are several factors to consider. A thrust cylinder, also known as a Hydraulic cylinder, is a mechanical actuator that is used to provide unidirectional force through a unidirectional stroke. These cylinders are essential components in various industries, including construction, manufacturing, aerospace, and automotive. The choice of the best thrust cylinder depends on the specific requirements of the application, such as load capacity, stroke length, speed, and environmental conditions.

Understanding Thrust Cylinders

Before diving into the selection process, it is crucial to understand the basic components and functioning of a thrust cylinder. A typical thrust cylinder consists of a cylindrical barrel, a piston, a piston rod, and various seals. The piston divides the cylinder into two chambers: the rod side and the cap side. When hydraulic fluid is introduced into one of the chambers, it exerts pressure on the piston, causing it to move and generate thrust.

The primary function of a thrust cylinder is to convert hydraulic energy into mechanical energy, which is then used to perform work. The efficiency and performance of a thrust cylinder depend on its design, material quality, and the precision of its components.

Factors to Consider When Choosing the Best Thrust Cylinder

1. Load Capacity: The load capacity of a thrust cylinder is one of the most critical factors to consider. It refers to the maximum force that the cylinder can generate. The load capacity should be sufficient to handle the weight and resistance of the load being moved. Overloading a cylinder can lead to premature wear, failure, and safety hazards.

2. Stroke Length: The stroke length is the distance that the piston can travel within the cylinder. It determines the range of motion that the cylinder can provide. The stroke length should be appropriate for the application to ensure that the cylinder can fully extend and retract as needed.

3. Speed: The speed of a thrust cylinder is determined by the flow rate of the hydraulic fluid and the size of the cylinder. Faster cylinders are suitable for applications that require quick movements, while slower cylinders are better for tasks that require precision and control.

4. Environmental Conditions: The operating environment plays a significant role in the selection of a thrust cylinder. Factors such as temperature, humidity, exposure to corrosive substances, and the presence of dust or debris can affect the performance and longevity of the cylinder. It is essential to choose a cylinder that is designed to withstand the specific environmental conditions of the application.

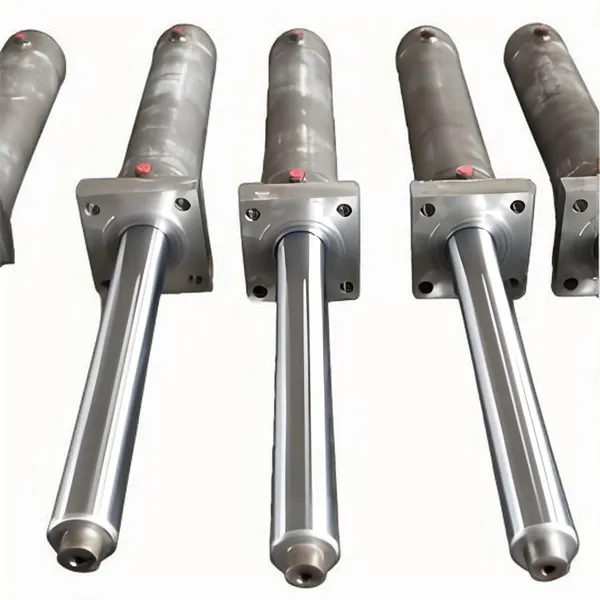

5. Mounting Style: Thrust cylinders come in various mounting styles, including flange mounts, clevis mounts, and trunnion mounts. The mounting style should be compatible with the machinery or equipment to ensure proper installation and alignment.

6. Seal Type: The seals in a thrust cylinder prevent hydraulic fluid from leaking and keep contaminants out. The type of seal used depends on the operating conditions and the type of hydraulic fluid. High-quality seals are essential for maintaining the efficiency and reliability of the cylinder.

7. Material Quality: The materials used in the construction of the thrust cylinder affect its durability and performance. High-strength materials such as steel and aluminum are commonly used for the barrel and piston rod. The choice of material should be based on the application's requirements, including load capacity and environmental conditions.

8. Maintenance Requirements: Regular maintenance is essential for the long-term performance of a thrust cylinder. Some cylinders require more frequent maintenance than others, depending on their design and operating conditions. It is important to choose a cylinder that is easy to maintain and has readily available replacement parts.

Types of Thrust Cylinders

There are several types of thrust cylinders, each designed for specific applications. Understanding the different types can help in selecting the best cylinder for your needs.

1. Single-Acting Cylinders: Single-acting cylinders generate force in one direction only, typically through the extension of the piston rod. The retraction of the rod is usually achieved by an external force, such as a spring or gravity. These cylinders are commonly used in applications where the load can assist in the retraction, such as in hydraulic jacks.

2. Double-Acting Cylinders: Double-acting cylinders can generate force in both directions, allowing for both extension and retraction of the piston rod. These cylinders are more versatile and are used in a wide range of applications, including industrial machinery and construction equipment.

3. Telescopic Cylinders: Telescopic cylinders consist of multiple stages that extend and retract in a telescoping manner. These cylinders are used in applications that require a long stroke length but have limited space for the cylinder's retracted length. They are commonly used in dump trucks and hydraulic cranes.

4. Tandem Cylinders: Tandem cylinders consist of two or more cylinders connected in series. These cylinders are used in applications that require a high force output but have limited space for a single large cylinder. The force generated by each cylinder is additive, resulting in a higher total force output.

5. Differential Cylinders: Differential cylinders have different effective areas on the piston's two sides, resulting in different force outputs during extension and retraction. These cylinders are used in applications that require varying force levels during the stroke.

Applications of Thrust Cylinders

Thrust cylinders are used in a wide range of applications across various industries. Some common applications include:

1. Construction Equipment: Thrust cylinders are used in construction machinery such as excavators, bulldozers, and cranes. They provide the necessary force to lift, push, and move heavy loads.

2. Manufacturing Machinery: In manufacturing, thrust cylinders are used in presses, injection molding machines, and conveyor systems. They provide precise control and force for various manufacturing processes.

3. Aerospace: Thrust cylinders are used in aircraft landing gear, flight control systems, and cargo handling equipment. They must meet stringent safety and performance standards due to the critical nature of aerospace applications.

4. Automotive: In the automotive industry, thrust cylinders are used in braking systems, suspension systems, and engine components. They provide the necessary force and control for vehicle operation.

5. Marine: Thrust cylinders are used in marine applications such as ship steering systems, cargo handling equipment, and hydraulic winches. They must be designed to withstand the harsh marine environment.

Conclusion

Selecting the best thrust cylinder for your application requires a thorough understanding of the cylinder's components, types, and factors that influence its performance. By considering factors such as load capacity, stroke length, speed, environmental conditions, mounting style, seal type, material quality, and maintenance requirements, you can make an informed decision that ensures the efficiency, reliability, and longevity of the thrust cylinder.

In summary, the best thrust cylinder is one that meets the specific requirements of your application, provides the necessary force and control, and is designed to withstand the operating conditions. By carefully evaluating these factors and understanding the different types of thrust cylinders available, you can select the cylinder that best suits your needs and ensures optimal performance in your application.
