Processing method of long oil cylinder barrel

2025-08-01 14:27:57

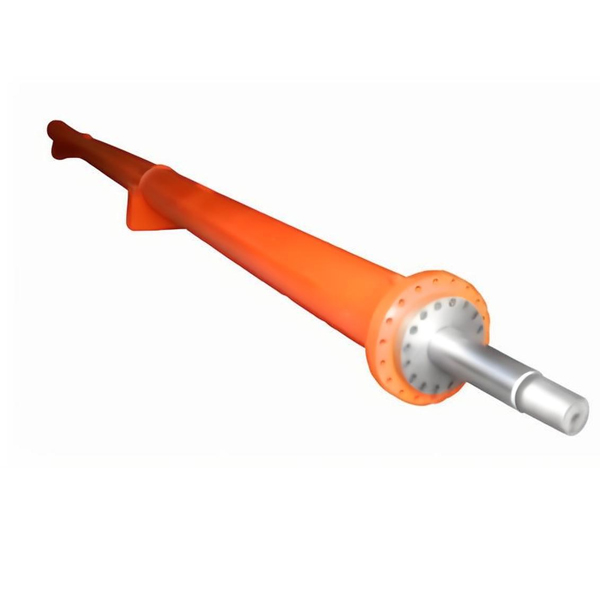

# Processing Method of Long Oil Cylinder Barrel   The long oil cylinder barrel (typically with a length-to-diameter ratio >10:1) is a core component of extra-long Hydraulic cylinders, demanding strict precision in straightness, surface roughness, and wall thickness uniformity. Its processing involves a series of specialized techniques to overcome challenges like deep-hole machining difficulties, deformation during processing, and precision control. Below is a detailed breakdown of the processing method, from raw material preparation to final inspection.

## 1. Raw Material Selection and Pretreatment   The performance of the long cylinder barrel directly depends on material quality, as it must withstand high hydraulic pressure (up to 31.5 MPa or higher) and resist wear.   - **Material Selection**: High-strength alloy steel is preferred, such as 42CrMo (tensile strength ≥1000 MPa) or 27SiMn (excellent toughness). For corrosive environments, 304/316 stainless steel may be used, though it increases processing complexity.   - **Pretreatment**:    - **Forging**: The raw steel billet undergoes hot forging at 1100–1200°C to refine grain structure, eliminate internal defects (e.g., pores, inclusions), and improve material density. For barrels over 5 meters long, segmented forging followed by welding (using submerged arc welding) is common, with welds subjected to ultrasonic flaw detection.    - **Annealing**: After forging, the billet is annealed (heated to 800–850°C, held for 2–4 hours, then cooled slowly) to reduce internal stress and improve machinability, preventing deformation during subsequent processing.   ## 2. Rough Machining: Shaping the Barrel   Rough machining aims to remove excess material, form the basic dimensions, and prepare for precision processing.   - **Lathe Turning**: Using a heavy-duty horizontal lathe (with a spindle bore ≥ the barrel’s outer diameter), the outer surface is turned to the approximate outer diameter (leaving 3–5 mm machining allowance). Both ends are faced to ensure perpendicularity to the axis (tolerance ≤0.05 mm/m).   - **Drilling the Initial Hole**: For solid billets, a center hole is drilled at both ends to guide deep-hole machining. For seamless steel pipes (a common raw material for shorter long barrels), this step is omitted, but the inner surface is inspected for defects.   ## 3. Key Process: Deep-Hole Machining   Deep-hole machining is the most critical step for long cylinder barrels, as the inner hole’s straightness, roundness, and surface roughness directly affect hydraulic performance. Common methods include:   ### 3.1 Gun Drilling   Suitable for barrels with small diameters (≤150 mm) and length-to-diameter ratios >30:1.   - **Principle**: A single-flute drill with external cooling (high-pressure cutting fluid is injected through the drill shank) removes chips while cooling. The drill’s guide pad ensures straightness.   - **Parameters**: Cutting speed 60–100 m/min, feed rate 0.1–0.2 mm/r. For a 6-meter barrel with 100 mm diameter, machining takes 2–3 hours.   - **Advantages**: High straightness (≤0.1 mm/m), suitable for small-diameter long holes.   - **Limitations**: Low efficiency for large diameters; chip removal is challenging for materials with high toughness.   ### 3.2 BTA Deep-Hole Drilling   Ideal for medium to large diameters (150–500 mm) and length-to-diameter ratios 10:1–20:1.   - **Principle**: A double-tube system (drill pipe and outer sleeve) delivers high-pressure cutting fluid (8–12 MPa) through the annular gap between the tubes, flushing chips out through the drill pipe’s inner cavity. The drill is supported by multiple guide pads to maintain stability.   - **Parameters**: Cutting speed 80–150 m/min, feed rate 0.15–0.3 mm/r. For a 5-meter barrel with 300 mm diameter, machining takes 1–2 hours.   - **Advantages**: High efficiency, good chip removal, and stable straightness (≤0.2 mm/m).   - **Applications**: Widely used in heavy machinery long cylinder barrels (e.g., shield machine Thrust cylinders).   ### 3.3 Trepanning   For extra-large diameters (>500 mm), trepanning is employed to cut a cylindrical core from the billet, leaving a hollow barrel.   - **Principle**: A circular cutter with multiple blades removes the core, reducing material waste compared to solid drilling.   - **Note**: Requires heavy-duty equipment and strict control of cutting force to avoid vibration.   ## 4. Heat Treatment: Enhancing Mechanical Properties   After deep-hole machining, heat treatment is performed to improve the barrel’s strength, toughness, and wear resistance.   - **Quenching and Tempering**:    - Quenching: Heat the barrel to 850–880°C (depending on material), hold for 1–2 hours, then water-cool to achieve a martensitic structure.    - Tempering: Reheat to 550–600°C, hold for 2–4 hours, then air-cool to form tempered sorbite. This process ensures hardness of 220–280 HBW, balancing strength and machinability.   - **Stress Relief Annealing**: For barrels over 8 meters, intermediate stress relief (heated to 500–550°C, held for 3–6 hours) is added after rough machining to prevent deformation during final processing.   ## 5. Precision Machining: Achieving Final Dimensions and Surface Quality   Precision machining refines the inner and outer surfaces to meet strict tolerances.   - **Outer Diameter Grinding**: Using a cylindrical grinder with a follow rest (to support long barrels and prevent deflection), the outer diameter is ground to the final size (tolerance IT7, e.g., φ300h7). Surface roughness is controlled to Ra 0.8–1.6 μm.   - **Inner Hole Honing**: The most critical step for inner surface quality, honing corrects minor deviations from deep-hole machining and improves surface finish.    - **Process**: A multi-stone honing head (with abrasive grains 80#–200#) expands radially to contact the inner wall, rotating and reciprocating to remove 0.05–0.1 mm of material.    - **Parameters**: Honing speed 15–30 m/min, stroke length 1.2× the stone width. For a 6-meter barrel, honing takes 4–6 hours.    - **Results**: Straightness ≤0.05 mm/m, roundness ≤0.01 mm, surface roughness Ra 0.2–0.4 μm—critical for reducing seal wear and hydraulic friction.   ## 6. Surface Treatment: Corrosion and Wear Resistance   Long cylinder barrels, often used in harsh environments, require surface treatments to extend service life.   - **Outer Surface Treatment**:    - **Painting**: A two-layer system (epoxy primer + polyurethane topcoat) resists corrosion; thickness 80–120 μm. For offshore applications, add a zinc-rich primer (dry film thickness ≥60 μm) for galvanic protection.    - **Electroplating**: For high-wear scenarios, chrome plating (5–10 μm) improves hardness, though it is less common for outer surfaces due to cost.   - **Inner Surface Treatment (Optional)**:    - **Nitriding**: For barrels in high-temperature environments (e.g., hot presses), gas nitriding (500–550°C for 20–30 hours) forms a 0.1–0.3 mm nitride layer (hardness ≥HV800) to resist wear and oxidation.    - **Chromium Plating**: Rarely used for inner surfaces (risk of plating peeling), but ceramic coating (Al₂O₃, 50–100 μm) may be applied for extreme wear resistance.   ## 7. Finishing and Inspection   Final steps ensure the barrel meets design specifications before assembly.   - **End Machining**: Bore and tap the end ports (for hydraulic connections) using a CNC lathe, ensuring thread accuracy (e.g., M27×2-6H) and perpendicularity to the barrel axis.   - **Cleaning**: Ultrasonic cleaning (using alkaline detergent) removes machining residues, followed by hot air drying to prevent rust.   - **Inspection**:    - **Dimensional Checks**: Use a coordinate measuring machine (CMM) to verify outer diameter, inner diameter, and straightness.    - **Surface Quality**: Check roughness with a profilometer; inspect for cracks using magnetic particle testing (MPT) or ultrasonic testing (UT).    - **Pressure Testing**: Hydrostatic testing at 1.5× rated pressure (held for 30 minutes) to ensure no leakage or deformation.   ## Key Challenges and Solutions in Processing   - **Deformation Control**: Use rigid fixtures, avoid uneven heating during heat treatment, and perform intermediate stress relief for barrels over 6 meters.   - **Deep-Hole Straightness**: Employ multi-point support (follow rests) during machining; use BTA drilling for better stability than gun drilling in large diameters.   - **Surface Finish**: Gradually reduce abrasive grain size in honing (from 80# to 200#) and control honing pressure to avoid surface burns.   ## Conclusion   Processing long oil cylinder barrels requires a combination of advanced equipment (BTA deep-hole drills, precision honing machines) and strict process control. From material forging to final pressure testing, each step directly impacts the barrel’s performance—ensuring it can withstand high pressure, resist wear, and maintain precision in long-stroke operations. By mastering these techniques, manufacturers can produce reliable long cylinder barrels for critical applications in construction machinery, metallurgy, and marine engineering.
