Piston rod processing technology

2025-07-31 08:58:32

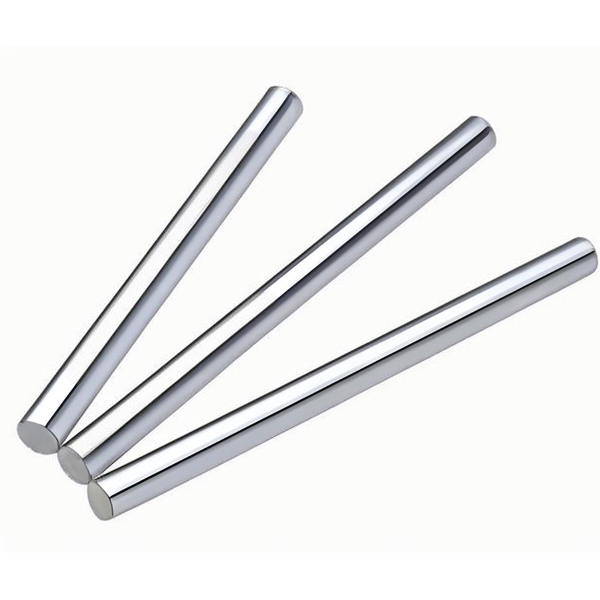

piston rod Processing Technology: A Comprehensive Overview

The piston rod is a critical component in various mechanical systems, particularly in engines, Hydraulic cylinders, and pneumatic systems. Its primary function is to transmit the force generated by the piston to the crankshaft or other mechanical linkages, converting linear motion into rotational motion or vice versa. Given its pivotal role, the processing technology of piston rods must ensure high precision, durability, and reliability. This article delves into the intricacies of piston rod processing technology, covering material selection, manufacturing processes, surface treatments, and quality control measures.

Material Selection

The choice of material for piston rods is paramount, as it directly impacts the component's performance, longevity, and resistance to wear and corrosion. Common materials used in piston rod manufacturing include:

1. Carbon Steel: Carbon steel is widely used due to its excellent strength, toughness, and machinability. Grades such as 1045 and 4140 are popular choices, offering a good balance between cost and performance. However, carbon steel is susceptible to corrosion, necessitating protective coatings or treatments.

2. Stainless Steel: Stainless steel, particularly grades like 304 and 316, is preferred for applications requiring high corrosion resistance. These materials are more expensive than carbon steel but offer superior durability in harsh environments, such as marine or chemical processing applications.

3. Alloy Steel: Alloy steels, such as 4340 and 8620, are used when higher strength and toughness are required. These materials often undergo heat treatment processes like quenching and tempering to enhance their mechanical properties.

4. Titanium: Titanium is chosen for high-performance applications where weight reduction is critical. It offers excellent strength-to-weight ratio and corrosion resistance but is more expensive and challenging to machine.

5. Aluminum: Aluminum alloys are used in lightweight applications, such as aerospace or automotive industries. While not as strong as steel, aluminum offers good corrosion resistance and is easier to machine.

Manufacturing Processes

The manufacturing of piston rods involves several precision machining processes to achieve the required dimensions, surface finish, and mechanical properties. Key processes include:

1. Turning: Turning is the primary machining operation for piston rods. It involves rotating the workpiece while a cutting tool removes material to achieve the desired diameter and surface finish. CNC (Computer Numerical Control) lathes are commonly used for high precision and repeatability.

2. Grinding: Grinding is employed to achieve tight tolerances and fine surface finishes. Both cylindrical and centerless grinding techniques are used, depending on the specific requirements of the piston rod.

3. Honing: Honing is a finishing process that improves the surface texture and dimensional accuracy of the piston rod. It involves using an abrasive stone to remove minute amounts of material, resulting in a smooth and precise surface.

4. Heat Treatment: Heat treatment processes, such as quenching and tempering, are applied to enhance the mechanical properties of the piston rod. These processes increase hardness, strength, and wear resistance while maintaining toughness.

5. Hard Chrome Plating: Hard chrome plating is a common surface treatment for piston rods, providing excellent wear resistance, corrosion protection, and a low coefficient of friction. The plating process involves electroplating a thin layer of chromium onto the surface of the piston rod.

6. Polishing: Polishing is the final step in the manufacturing process, ensuring a smooth and reflective surface finish. This not only enhances the aesthetic appeal but also reduces friction and wear during operation.

Surface Treatments

Surface treatments are crucial for enhancing the performance and longevity of piston rods. Some of the most common surface treatments include:

1. Hard Chrome Plating: As mentioned earlier, hard chrome plating is widely used for its wear resistance and corrosion protection. The plating thickness typically ranges from 0.0005 to 0.005 inches, depending on the application.

2. Nitriding: Nitriding is a surface hardening process that involves diffusing nitrogen into the surface layer of the piston rod. This process increases surface hardness, wear resistance, and fatigue strength without significantly affecting the core material properties.

3. Phosphating: Phosphating is a chemical treatment that creates a phosphate layer on the surface of the piston rod. This layer improves corrosion resistance and provides a good base for subsequent coatings or lubricants.

4. PVD/CVD Coatings: Physical Vapor Deposition (PVD) and Chemical Vapor Deposition (CVD) are advanced coating techniques that apply thin, hard, and wear-resistant layers onto the piston rod surface. These coatings, such as titanium nitride (TiN) or diamond-like carbon (DLC), offer superior performance in high-stress applications.

5. Anodizing: Anodizing is primarily used for aluminum piston rods, creating a hard, corrosion-resistant oxide layer on the surface. This process also allows for the incorporation of dyes, enabling color customization.

Quality Control Measures

Ensuring the quality of piston rods is critical to their performance and reliability. Various quality control measures are implemented throughout the manufacturing process, including:

1. Dimensional Inspection: Precision measuring instruments, such as micrometers, calipers, and coordinate measuring machines (CMM), are used to verify the dimensional accuracy of piston rods. Critical dimensions, such as diameter, length, and surface finish, are closely monitored.

2. Hardness Testing: Hardness testing, using methods like Rockwell or Brinell, is performed to ensure the piston rod meets the specified hardness requirements. This is particularly important for heat-treated and surface-hardened components.

3. Surface Finish Analysis: Surface finish is analyzed using profilometers or surface roughness testers to ensure it meets the required specifications. A smooth surface finish is essential for reducing friction and wear.

4. Non-Destructive Testing (NDT): NDT techniques, such as ultrasonic testing, magnetic particle inspection, and dye penetrant inspection, are used to detect surface and subsurface defects without damaging the piston rod.

5. Corrosion Testing: Corrosion resistance is evaluated through salt spray testing or other accelerated corrosion tests. This is particularly important for piston rods used in corrosive environments.

6. Functional Testing: Functional testing involves subjecting the piston rod to real-world operating conditions to verify its performance and durability. This may include load testing, fatigue testing, and pressure testing.

Conclusion

Piston rod processing technology is a complex and multifaceted field that requires careful consideration of material selection, manufacturing processes, surface treatments, and quality control measures. The precise and reliable performance of piston rods is essential for the efficient operation of engines, hydraulic systems, and other mechanical applications. By leveraging advanced technologies and stringent quality control practices, manufacturers can produce piston rods that meet the demanding requirements of modern engineering applications. As technology continues to evolve, we can expect further advancements in piston rod processing, leading to even higher levels of performance and durability.
