Special-shaped cylinder

Introduction to Special-Shaped Cylinders

Special-shaped cylinders are hydraulic actuators that, unlike traditional cylindrical cylinders, transcend conventional design in terms of structural shape, appearance, and functional layout. They do not adhere to standardized dimensions and structural patterns, but are instead individually designed based on the installation space, motion trajectory, and functional requirements of specific equipment, adapting to a variety of complex and specialized work scenarios. In fields such as industrial automation and specialized equipment manufacturing, special-shaped cylinders, with their unique structure and performance, have become key components that address areas where conventional cylinders are incompatible.

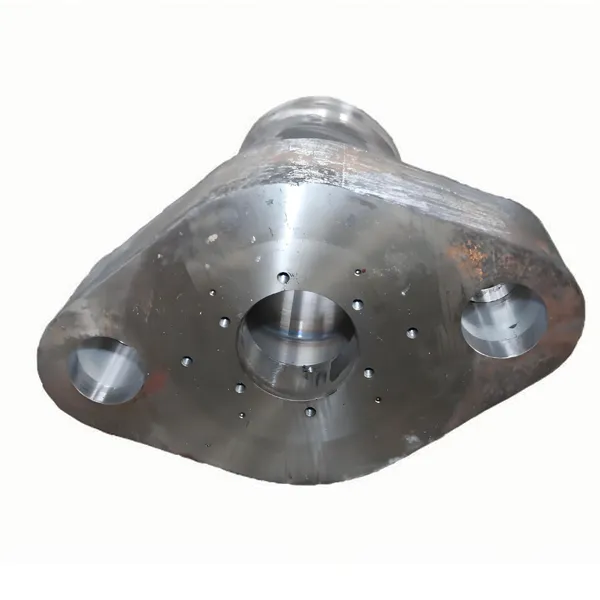

From a structural perspective, the "special-shaped" nature of special-shaped cylinders is primarily reflected in three aspects. First, the uniqueness of the outer contour. For example, the cylinder body may adopt a non-circular structure such as square, oval, or polygonal to accommodate narrow or irregular installation spaces. Second, the diversity of motion trajectories. Some special-shaped cylinders can achieve non-linear motion, such as arc-shaped swing and zigzag extension and retraction, meeting the complex motion requirements of the equipment. Third, the uniqueness of functional integration. Some special-shaped cylinders incorporate additional functions such as guides, limiters, and sensors. For example, guide grooves can be machined directly into the cylinder body, or displacement sensors can be built in to monitor the movement position in real time, reducing the need for external components and improving system integration.

The design and manufacture of special-shaped cylinders requires extremely high technical requirements and a rigorous process. First, the technical team conducts a thorough analysis of the customer's specific needs, including the equipment's installation size limitations, load characteristics, motion path, operating environment (such as temperature, humidity, and corrosiveness), and interoperability with other components. Based on this information, a structural design is developed, a model is constructed using 3D modeling software, and finite element analysis is used to verify the strength and stiffness of key components (such as the special-shaped cylinder body and the specially shaped piston rod) to ensure that they will not deform or damage under the rated load. Simulating the cylinder's motion is also necessary to verify its coordination with other equipment components and avoid motion interference.

In manufacturing, special-shaped cylinders rely on high-precision machining equipment and processes. Due to their irregular structure, traditional machining methods are insufficient. Therefore, advanced equipment such as five-axis CNC machines and EDM machines are often used to ensure dimensional accuracy and surface quality of the special-shaped parts. Processing special materials (such as high-strength alloys and stainless steel) also requires specialized tooling and cooling systems. Designing the sealing system is one of the challenges in manufacturing special-shaped cylinders. Due to their unique structure, conventional seals are incompatible, requiring custom seals and multiple tests to optimize the sealing structure to ensure leak-free operation during complex motion. Furthermore, special-shaped cylinders undergo rigorous testing before shipment, including pressure testing, leak detection, and motion accuracy testing, to ensure performance meets standards.

Special-shaped cylinders have a wide range of applications, spanning multiple industries. In the aerospace field, special-shaped cylinders are used in aircraft landing gear retraction and extension mechanisms, satellite antenna adjustment devices, and other areas where space is limited and movement is complex, and they precisely adapt to these applications. In the automotive manufacturing industry, they power specialized robotic arms in automated production lines, enabling complex welding and handling operations. In the medical device field, they drive the joints of precision surgical robots, requiring smooth movement and high precision. In logistics and warehousing equipment, they adapt to stacker cranes in automated warehouses, enabling efficient storage and retrieval of goods. In marine engineering equipment, robotic arms used in deep-sea exploration equipment must withstand high pressure, corrosion, and other harsh environments. Special-shaped cylinders, with their unique structure and materials, meet these requirements.

Compared to conventional cylinders, special-shaped cylinders offer significant advantages. First, they offer strong spatial adaptability, enabling flexible installation in confined and irregular spaces, solving equipment layout challenges. Second, they offer high motion precision, enabling customized design to achieve complex motion trajectories and meet the precision requirements of the equipment. Third, they offer high functional integration, reducing the number of external components, simplifying the equipment structure, and improving system reliability. Fourth, they offer highly targeted performance, allowing for optimized materials and structures based on the operating environment and load characteristics, extending service life.

However, when selecting custom-shaped cylinders, customers should maintain close communication with the manufacturer and provide detailed and accurate requirements to enable the manufacturer to design the most suitable solution. Furthermore, due to the complexity of designing and manufacturing custom-shaped cylinders, their costs are relatively high, and lead times are long, so customers need to plan ahead. Furthermore, it is important to select a manufacturer with extensive experience and technical expertise to ensure product quality and ongoing after-sales service.

In short, custom-shaped cylinders, as customized hydraulic actuators, play an irreplaceable role in a variety of complex and specialized equipment due to their unique structure and performance. With the continuous advancement of industrial technology, the demand for custom-shaped cylinders will continue to increase, and their design and manufacturing technologies will continue to innovate, providing stronger support for the development of industrial automation.
