Hydraulic cylinder

Hydraulic cylinder Introduction

Hydraulic cylinders are essential actuators in hydraulic systems. They efficiently convert hydraulic energy into mechanical energy, achieving linear reciprocating or oscillating motion, playing a key role in numerous fields, including industrial production, construction, and transportation. Their high output force, smooth transmission, and precise control make them a core power component of modern mechanical equipment.

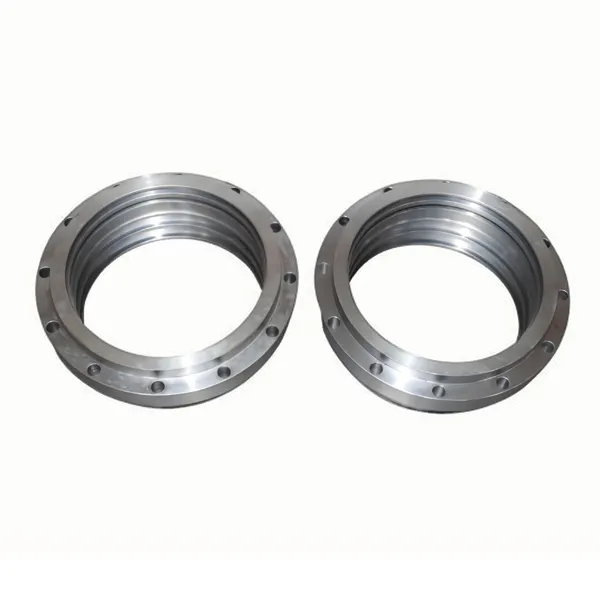

In terms of their structure, hydraulic cylinders consist of multiple precision components working together. The cylinder barrel, serving as the main frame, is seamlessly rolled and precision-machined from high-quality carbon steel or alloy structural steel. The inner wall is honed to a surface roughness of less than Ra0.4μm, providing a smooth guide surface for piston movement. The piston rod, acting as the force transmitter, is typically made of 45 steel or 40Cr alloy structural steel. Chrome-plated (chrome plating thickness 0.05-0.2mm) with a hardness exceeding HRC60, offering both wear and corrosion resistance, ensuring high precision during long-term reciprocating motion. The piston divides the interior of the cylinder into two sealed spaces: the rodless chamber and the rod chamber. Combined seals (such as U-rings and V-rings) are installed around the piston to prevent hydraulic oil leakage between the two chambers. Some pistons also feature guide rings to reduce direct friction with the cylinder's inner wall. End caps are mounted on both ends of the cylinder, secured by flanges or threaded connections. They contain guide sleeves and piston rod seals, ensuring smooth extension and retraction of the piston rod while preventing hydraulic oil leakage. In addition, most hydraulic cylinders are equipped with cushioning devices (such as cushioning plungers and throttle valves) and exhaust valves to mitigate impact at the end of the movement and expel air from the cylinder, respectively, ensuring smooth operation.

The operating principle of hydraulic cylinders is based on Pascal's law: pressure in a confined liquid is transferred with equal force. When high-pressure oil from the hydraulic pump enters the rodless chamber through the oil pipe, the oil pressure acts on the piston end face, generating thrust that pushes the piston and drives the piston rod forward. When the hydraulic oil enters the rod chamber, the pressure acts on the other side of the piston (with a smaller effective area), generating tension that retracts the piston rod. A directional valve controls the flow of oil, achieving reciprocating motion of the piston rod. Adjusting the flow control valve changes the oil flow rate, controlling the speed of motion. Changing the system pressure adjusts the output force. These three functions work together to meet the needs of various working conditions. For example, in machine tool feed systems, hydraulic cylinders can achieve low-speed, smooth motion at 0.01mm/s; in construction machinery, they can rapidly drive loads at speeds of 1m/s, demonstrating exceptional adaptability.

Hydraulic cylinders are classified into various types based on their structure and application. Piston cylinders are the most common type. Single-rod piston cylinders, due to the different effective areas at each end, offer the characteristics of "strong push, weak pull, slow push, fast pull," making them suitable for applications with primarily unidirectional loads. Double-rod piston cylinders, with balanced force at both ends, are often used in applications with consistent reciprocating speeds (such as worktable drives). Plunger cylinders rely on unidirectional piston motion and rely on external force for return travel. Their simple structure and long stroke make them suitable for equipment such as hydraulic presses. Swing cylinders can achieve reciprocating swings of less than 360°, delivering torque rather than thrust, and are widely used in rotary mechanisms. Telescopic cylinders, constructed from nested multiple cylinder sections, can achieve long strokes in a compact space and are core components for cranes and dump trucks. Additionally, corrosion-resistant stainless steel cylinders, high-temperature cylinders (resistant to temperatures above 300°C), and low-temperature cylinders (suitable for temperatures below -50°C) designed for specialized environments expand their application areas.

hydraulic cylinder performance indicators primarily include rated pressure (commonly 6.3-31.5 MPa), maximum stroke (ranging from tens of millimeters to tens of meters), cylinder diameter (20-500 mm), output force (up to thousands of kilonewtons), and speed range (0.001-10 m/s). Selection requires comprehensive consideration of parameters such as load size, installation space, and operating environment. Its core advantages lie in: high power density (high output force-to-weight ratio), high control accuracy (position error can be less than 0.1mm), strong overload resistance, and excellent environmental adaptability. These features give it a clear advantage in replacing mechanical transmission and pneumatic systems.

Maintenance is crucial to extending the life of hydraulic cylinders. Routinely inspect the piston rod surface for scratches and leaks, and regularly clean impurities adhering to the dust seal. Replace the hydraulic oil and filter element every 1,000 hours of operation to prevent wear caused by oil contamination. Deteriorating seals should be replaced promptly to prevent further leakage. During long-term storage, retract the piston rod and apply anti-rust oil to the surface to keep the cylinder filled with hydraulic oil to prevent rust. Proper maintenance can extend the service life of hydraulic cylinders to 10,000-30,000 hours, significantly reducing equipment failure rates.

As the core component of hydraulic technology, the development of hydraulic cylinders is closely linked to industrial progress. The application of new materials (such as carbon fiber composite materials) has made it more than 30% lighter; the integration of intelligent sensing technology (built-in displacement and pressure sensors) has realized real-time status monitoring; the introduction of digital twin technology can simulate the performance of the entire life cycle, promoting the continuous evolution of hydraulic cylinders towards high efficiency, intelligence, and long life, and providing stronger power support for intelligent manufacturing.
