Hot rolling mill cylinder

Hot Rolling Mill Cylinder Introduction

Hot rolling mill cylinders are the core actuators of the hot rolling mill's hydraulic system. During the hot rolling process, they perform critical tasks such as controlling roll pressure, adjusting the roll gap, and driving equipment. These tasks directly impact the precision, quality, and production efficiency of hot-rolled products. As the "power muscle" of the hot rolling mill, they must operate continuously and stably under extreme conditions of high temperature, high pressure, and high shock, making them an indispensable component in steel production.

Hot rolling mill cylinders face multiple harsh operating conditions. First, high temperatures. During hot rolling, steel temperatures can reach 800-1200°C. Radiant heat can raise the ambient temperature around the cylinder to over 100°C. Heat from the rolls is also directly transferred to the cylinder, causing thermal expansion of components such as the cylinder body and seals, impacting fit accuracy and sealing performance. Second, high-pressure loads. To achieve steel rolling, cylinders must provide tremendous rolling force. Operating pressures per cylinder can reach 30-50 MPa, with transient surge pressures even higher. This places extremely high demands on the cylinder's structural strength and fatigue resistance. Furthermore, the hot rolling environment is rife with impurities such as scale, water, and emulsions, which can easily infiltrate the cylinder interior, causing wear and corrosion. Furthermore, continuous vibration and impact act on the cylinder, exacerbating component wear.

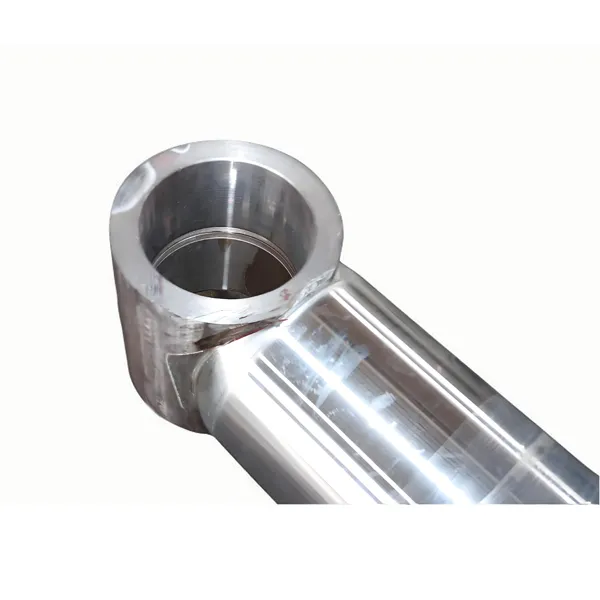

To cope with these environmental conditions, hot rolling mill cylinders feature unique structural design and material selection. The cylinder body is typically constructed from high-strength alloy structural steel (such as 42CrMo) through forging and precision machining. Tempering heat treatment enhances its overall mechanical properties, ensuring it resists deformation or cracking under high pressure. The piston rod is constructed from high-quality alloy steel, hardened and chrome-plated (with a chrome layer thickness of 0.1-0.2mm), achieving a hardness exceeding HRC60. This provides both wear and corrosion resistance, resisting scratches from scale and erosion from emulsions. The sealing system is a core technology for hot rolling mill cylinders. High-temperature and high-pressure resistant combined seals (such as polytetrafluoroethylene and rubber composite seals) are employed, along with dust seals and oil scrapers to effectively prevent impurities from entering while maintaining excellent sealing performance even at high temperatures. Some cylinders are also equipped with forced cooling systems (such as built-in cooling water pipes) that circulate cooling water to lower cylinder temperatures and prevent seal aging due to overheating.

Functionally, hot rolling mill cylinders can be divided into several types, each with different responsibilities. The hold-down cylinder is one of the most critical types. Installed on the mill housing, it directly drives the upper roll up and down, precisely controlling the roll gap and determining the rolled steel thickness. Its control accuracy can reach 0.01mm, ensuring uniform strip thickness. The side pressure cylinder adjusts the opening of the vertical rolls, controlling the steel width and ensuring a straight edge during rolling. The balancing cylinder balances the weight of components such as the upper rolls, reducing the load on the hold-down cylinder and improving control response speed. Additionally, there are cylinders for moving the roll changing system and adjusting the guide system, all of which ensure stable operation of the hot rolling mill.

The performance of the hot rolling mill cylinders directly impacts the mill's production efficiency and product quality. Its fast response speed allows it to adjust pressure and position within milliseconds, meeting the demands of high-speed rolling (modern hot rolling mills can reach speeds exceeding 20 m/s). In conjunction with high-precision servo valves and control systems, closed-loop pressure and position control is achieved, effectively compensating for various disturbances in the rolling process (such as uneven billet thickness and temperature fluctuations), and improving product dimensional accuracy. Furthermore, the cylinder's high reliability ensures continuous and stable mill operation, reduces downtime caused by equipment failure, and creates greater profitability for steel companies.

Regarding maintenance, strict maintenance procedures are required for hot rolling mill cylinders. Regularly inspect the cylinder's operating condition, including for leaks, scratches on the piston rod surface, and loose bolts. Hydraulic oil and filters should be replaced regularly to maintain fluid cleanliness (NAS level 8 or higher) and prevent wear caused by impurities. Seals should be regularly inspected and replaced, typically every 3-6 months depending on usage, to ensure sealing performance. Cylinder position accuracy and pressure control accuracy should be regularly measured, and any deviations should be calibrated promptly. Faulty cylinders require professional repair and must undergo pressure testing and performance verification before being put back into service.

As the steel industry moves toward high precision, high efficiency, and intelligent technology, hot rolling mill cylinders are also undergoing continuous upgrades. The new generation of cylinders integrates displacement and pressure sensors, providing real-time feedback on operating status. Linked to the mill control system via the Industrial Internet, they enable predictive maintenance and reduce failure rates. Simulation-optimized design and new wear-resistant and corrosion-resistant materials further extend the cylinder's service life and performance stability, providing a solid foundation for efficient and high-quality hot rolling production.
